Description

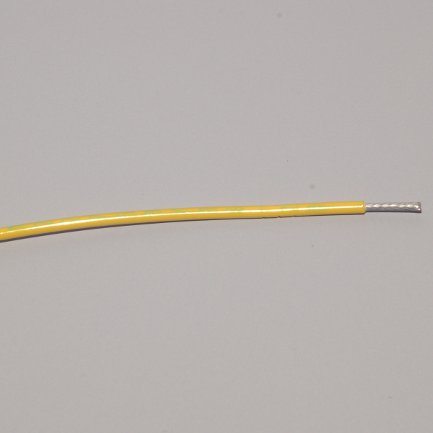

This aircraft quality wire is manufactured to MIL-W-22759/16 specs. This 20 gauge wire features standard tin-plated copper conductor with Tefzel insulation.
Our 20awg yellow Tefzel wire is rated for 7.5 amps, 600 volts rms & 150 degrees C.
The FAA AC43.13-1B recommends 7.5 amp CB protection for 20 awg wire.
See FAA AC 43.13-1B Tables 11-3 & 11-9 for protection & rating details.
Also see Military Specification Sheet MIL-W-22759-16a for wire construction details.
