Description

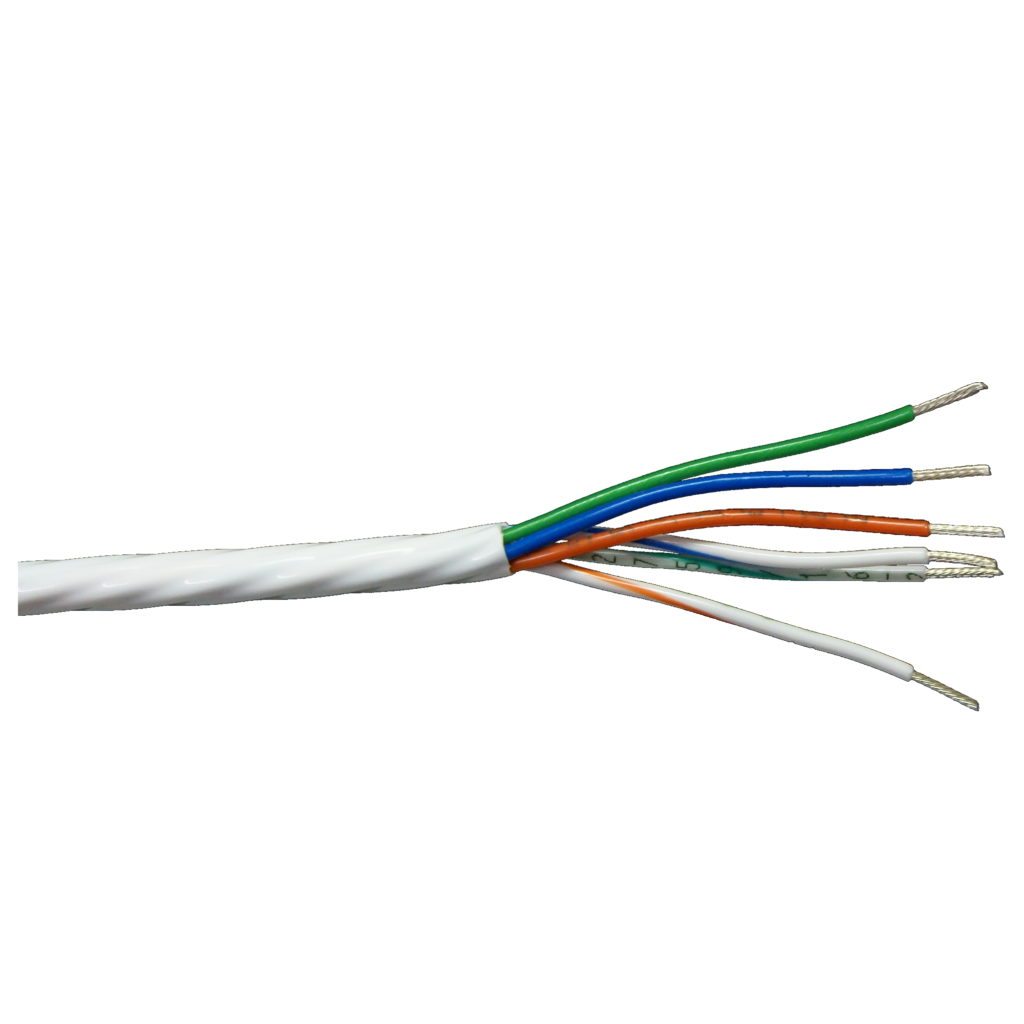

Cable of 6 22 awg stranded Tefzel (ETFE) insulated wires unshielded with jacket.
The wire colors are; orange, green, blue, white/orange, white/green, white/blue.
Used by Vans for RV14 stick wiring.
22 awg Tefzel wire is rated for 5 amps
22-6 conductor wire. commonly referred to as “twenty-two, six”
See military specification MIL-DTL-27500HÂ for cable construction details.
See Military Specification Sheet MIL-W-22759-16a WIRE SPECÂ for wire construction details
