Description

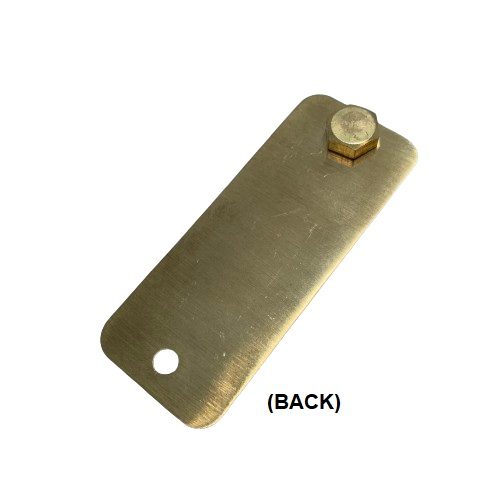

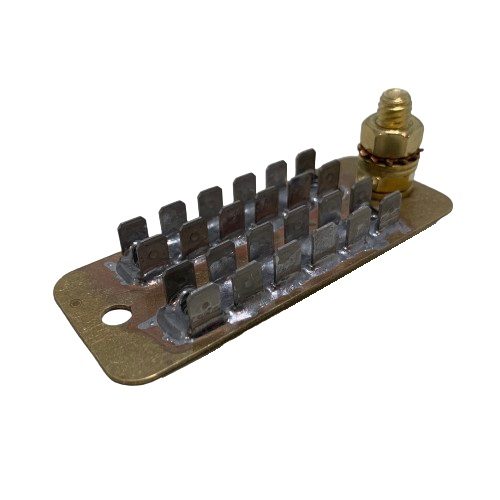

This 24 tab grounding tab attaches to the firewall and is used as a common, single grounding point for all your avionics and electronic devices.
Part includes: one brass plate, one (1) 1-1/8″ long; 5/16″ diameter bolt, 3 washers, one(1) star washer, and 2 nuts.
1/4″ Faston Terminals / Tab Terminals:
5/16″ Ring Terminals:
- 18-22 gauge wire= SA-044

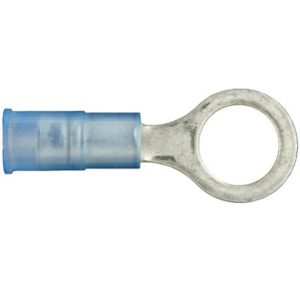

- 14-16 gauge wire= SA-046
- 10-12 gauge wire= SA-043
- 8 gauge wire= SA-032
- 6 gauge wire= SA-025
- 4 gauge wire= SA-055
- 2 gauge wire= SA-020
Dimensions: 3.5″ long x 1-3/8″ wide
