Description

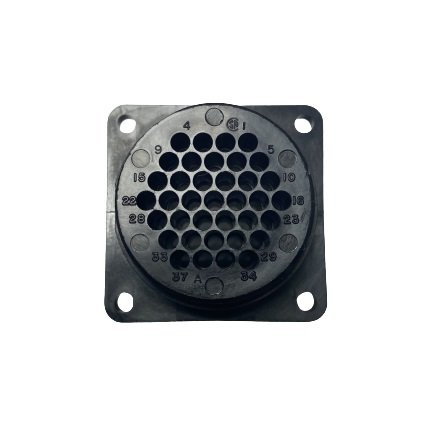

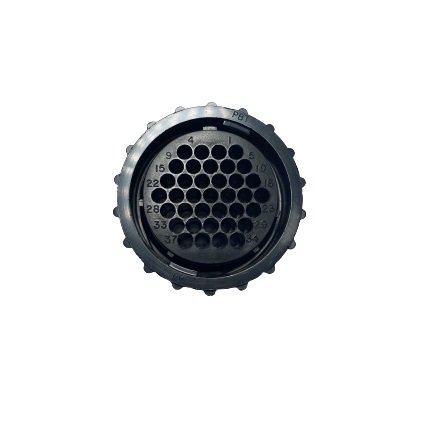

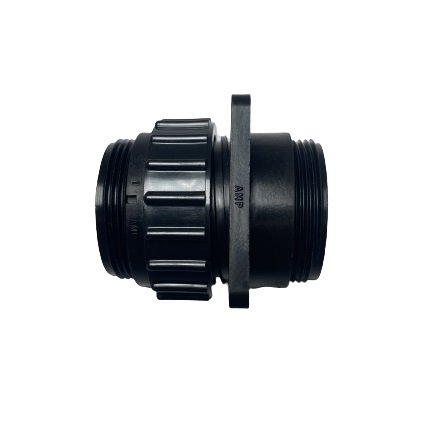

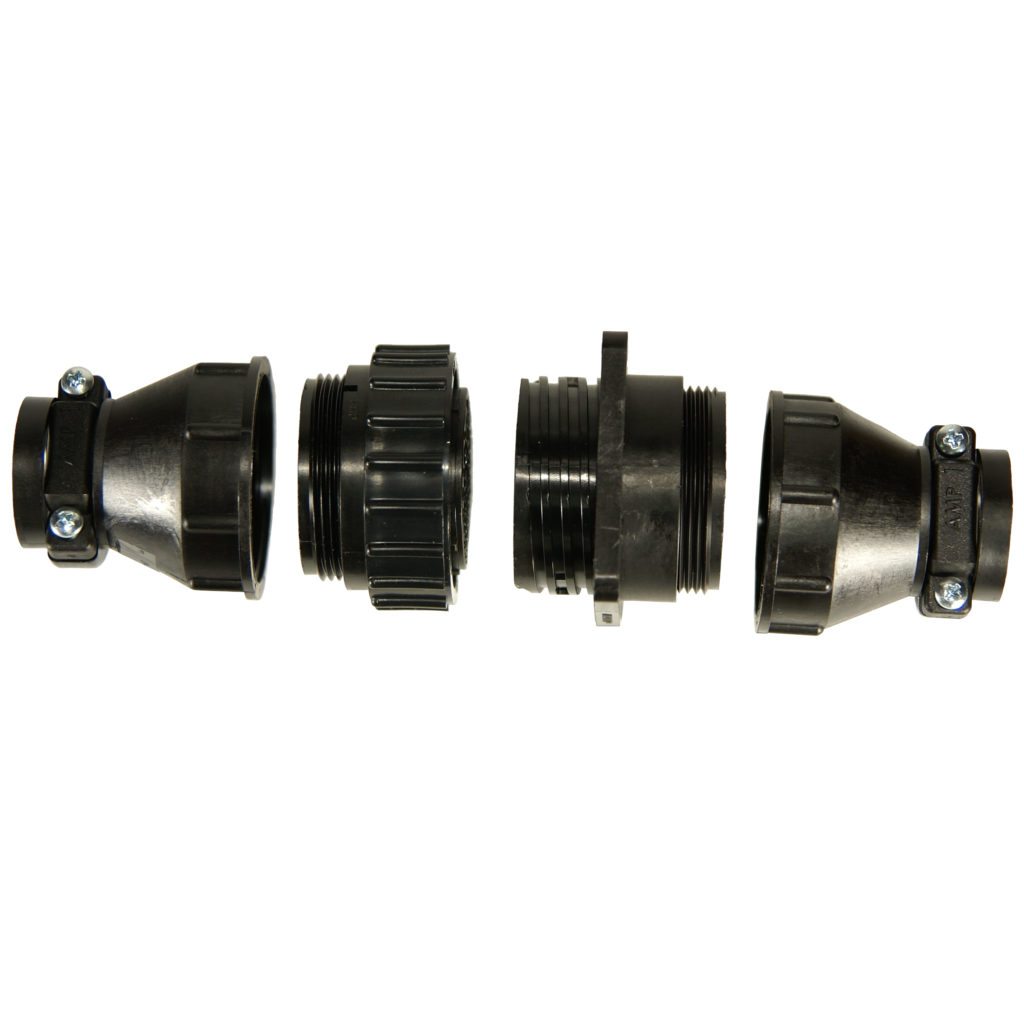

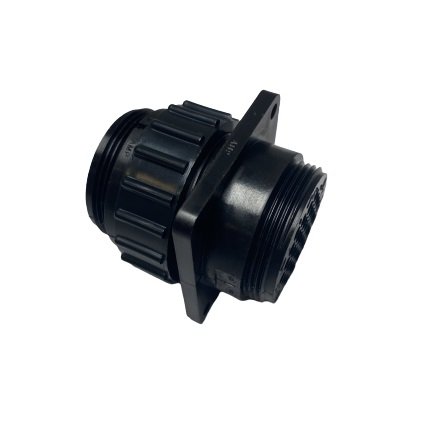

CPC bulkhead connector kit, Consisting of a flange mounted 37 position plug & receptacle connectors complete with backshells.
Contacts not included.

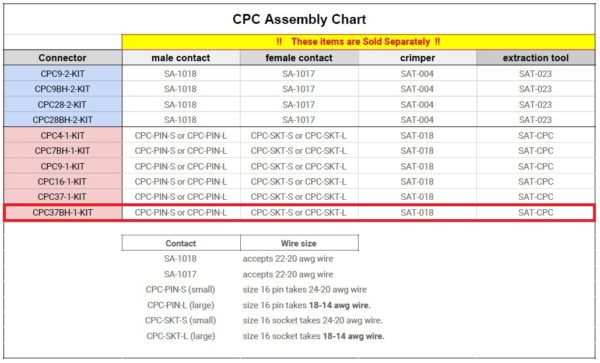

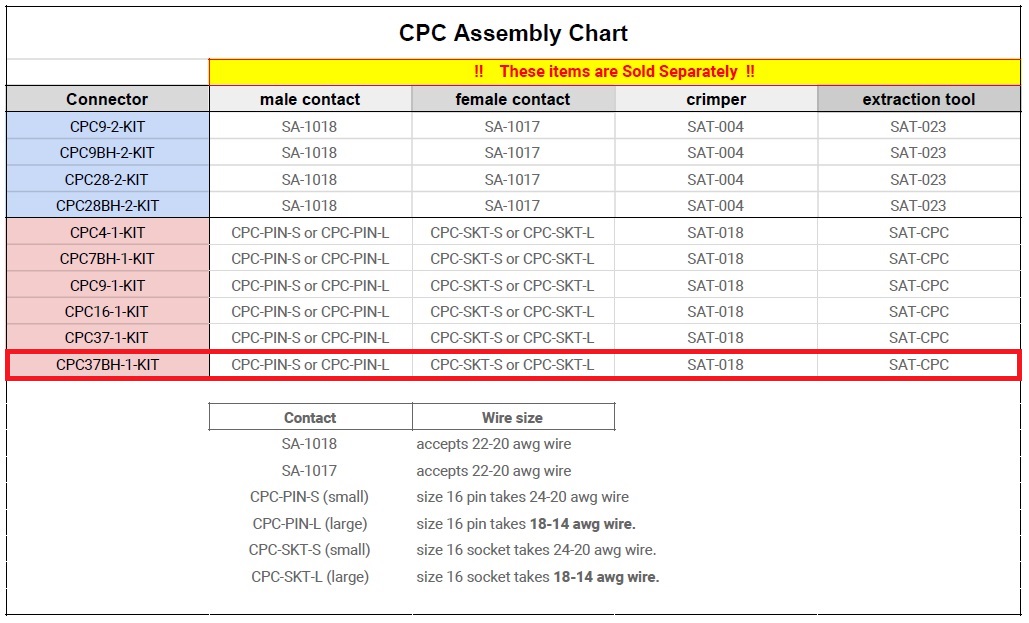

The receptacle uses CPC-PIN-L for 18-14 gauge wire or CPC-PIN-S contacts for 24-20 gauge wire.
The plug uses CPC-SKT-L for 18-14 gauge wire or CPC-SKT-S contacts for 24-20 gauge wire.
To extract CPC contacts from these connectors use the SAT-CPC extraction tool.
37 Receptacle Mounting Drawing
