AFM8 Positioner K42, for HIGH DENSITY D-Sub MALE Pins

Description

Mil Spec M22520/2-09, Daniels DMC Part #: K42.

Made in USA by Daniels DMC.

Used for M39029/58-360 Hi Density PIN contacts, SA-1018HD.

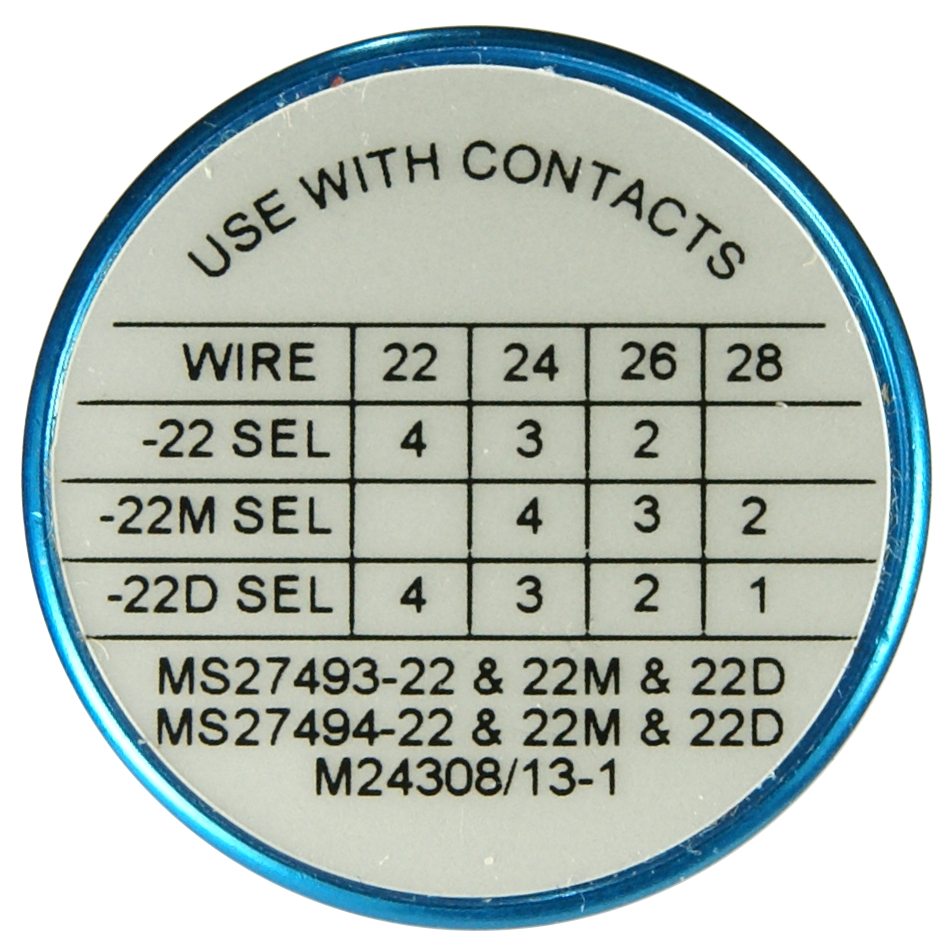

Pay attention to the “-22D” settings for 22, 24, 26 & 28awg wires

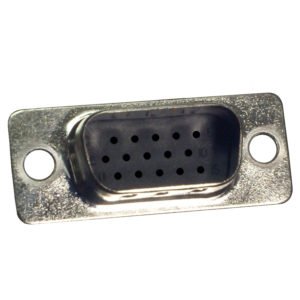

• These HD male pins are commonly used on many Garmin Avionics such as GTN-series, GTX-series, GMA-series, GMC-series
• The HD male pins are also used on PS Engineering audio panels.

K42 Data Sheet

Other positioners

• K13-1 – Positioner for standard density male (SA-1018) and female (SA-1017) dsub contacts used on most avionics and our harnesses.
• K41 – Positioner for HIGH DENSITY D-Sub FEMALE Sockets (SA-1017HD)

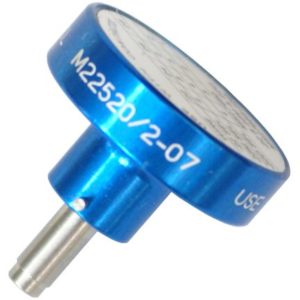

• K40 – Positioner for longer contacts, typically found on circular connectors. For example, Chelton avionics.
  • 38999 SERIES 1, 3, 4 CONNECTORS
  • 39029/56-350 22# SOCKET
  • 39029/56-349 22M# SOCKET
  • 39029/56-348 22D# SOCKET

Additional information
