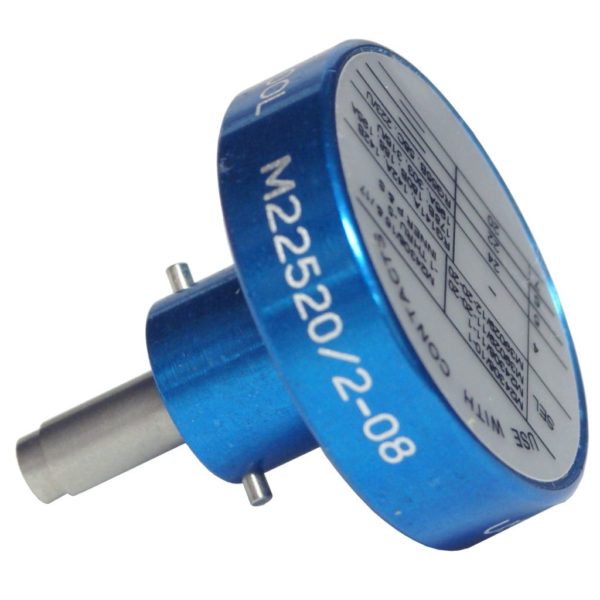

AFM8 Positioner K13-1, for STANDARD D-Sub Connectors, BOTH Male & Female

Description

Mil Spec M22520/2-08, Daniels DMC Part #: K13-1. Made in USA by Daniels DMC.
Used with M39029/63-368 & M39029/64-369 #20 standard contacts.

This is the primary positioner we use for our wiring jobs.
It works for the standard density male (SA-1018) and female (SA-1017) dsub contacts used on most avionics and our harnesses.

K13-1 Data-Sheet

Other positioners

• K42 – Positioner for HIGH DENSITY D-Sub MALE Pins (SA-1018HD)
  • Used on many Garmin Avionics such as GTN-series, GTX-series, GMA-series, GMC-series
  • Used on PS Engineering audio panels
• K41 – Positioner for HIGH DENSITY D-Sub FEMALE Sockets (SA-1017HD)
• K40 – Positioner for longer contacts, typically found on circular connectors. For example, Chelton avionics.
  • 38999 SERIES 1, 3, 4 CONNECTORS
  • 39029/56-350 22# SOCKET
  • 39029/56-349 22M# SOCKET
  • 39029/56-348 22D# SOCKET
