Description

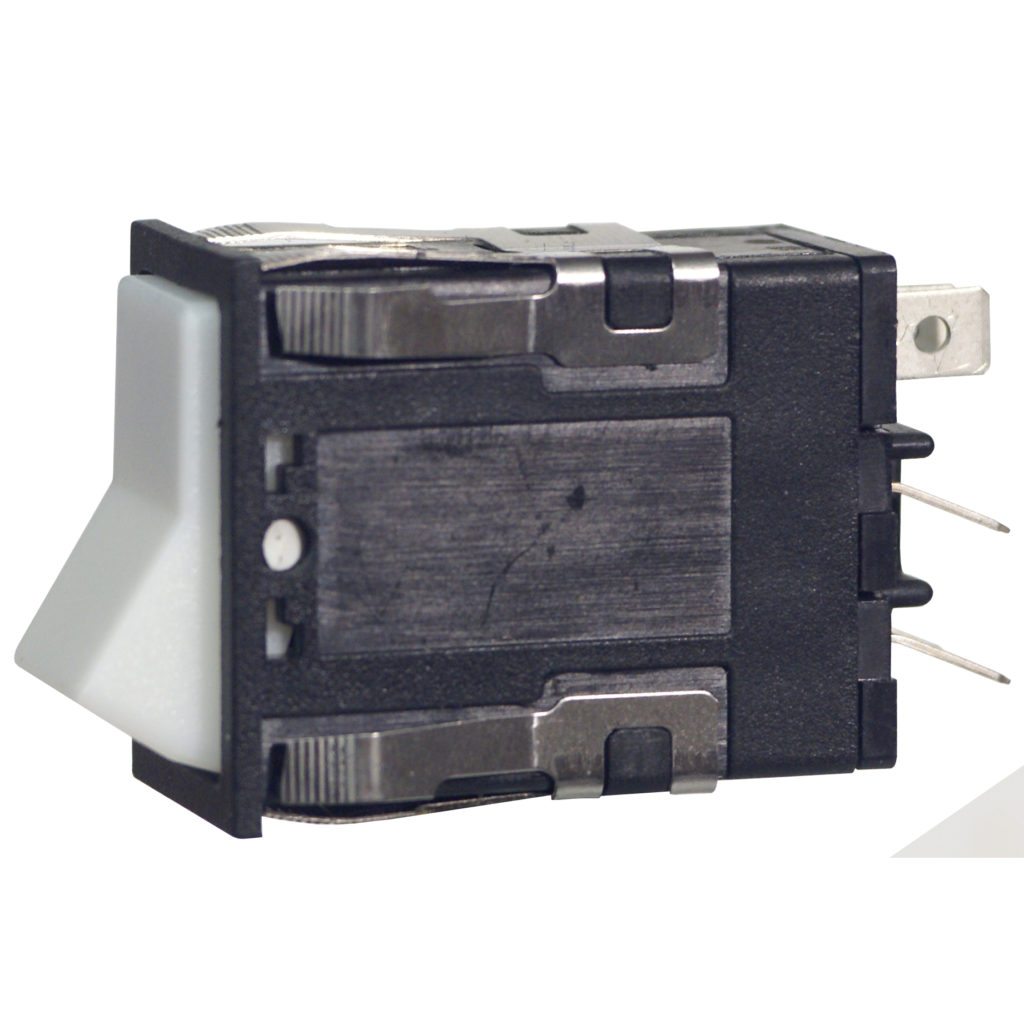

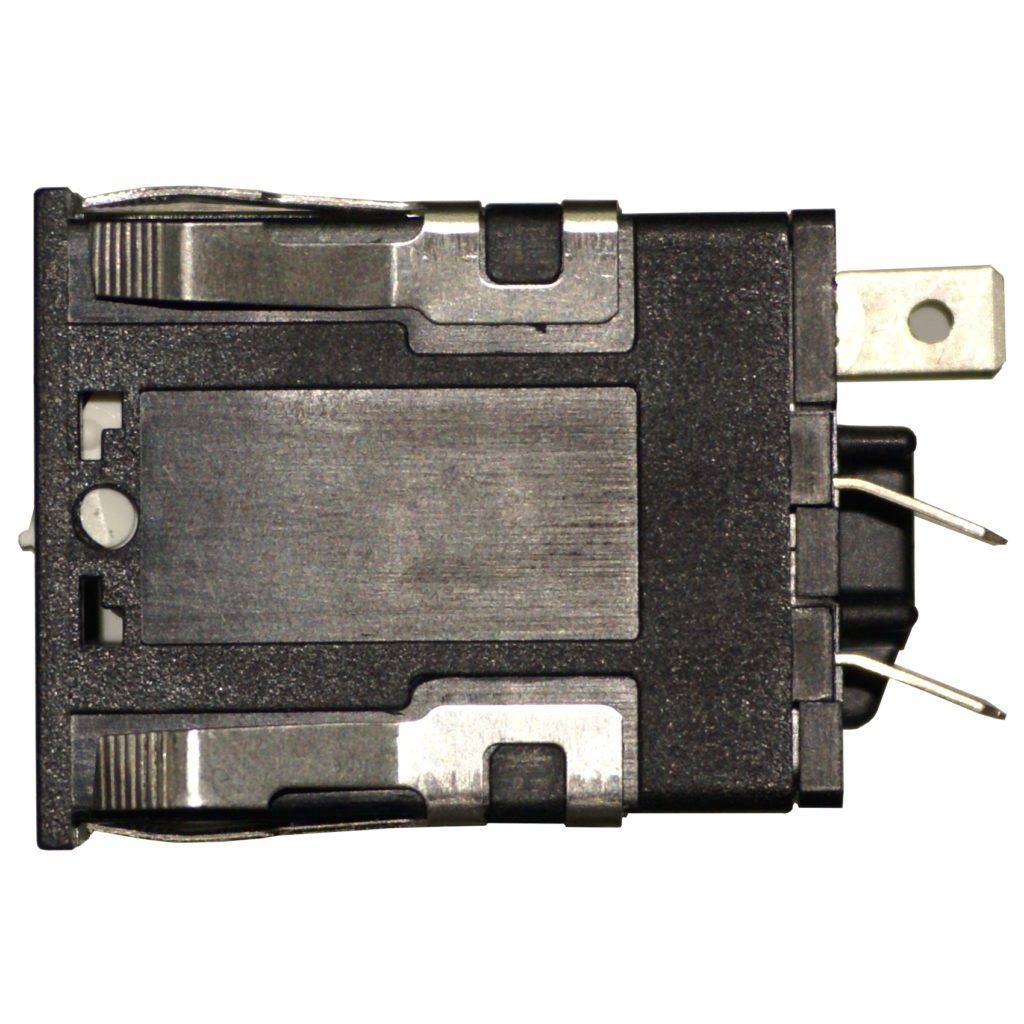

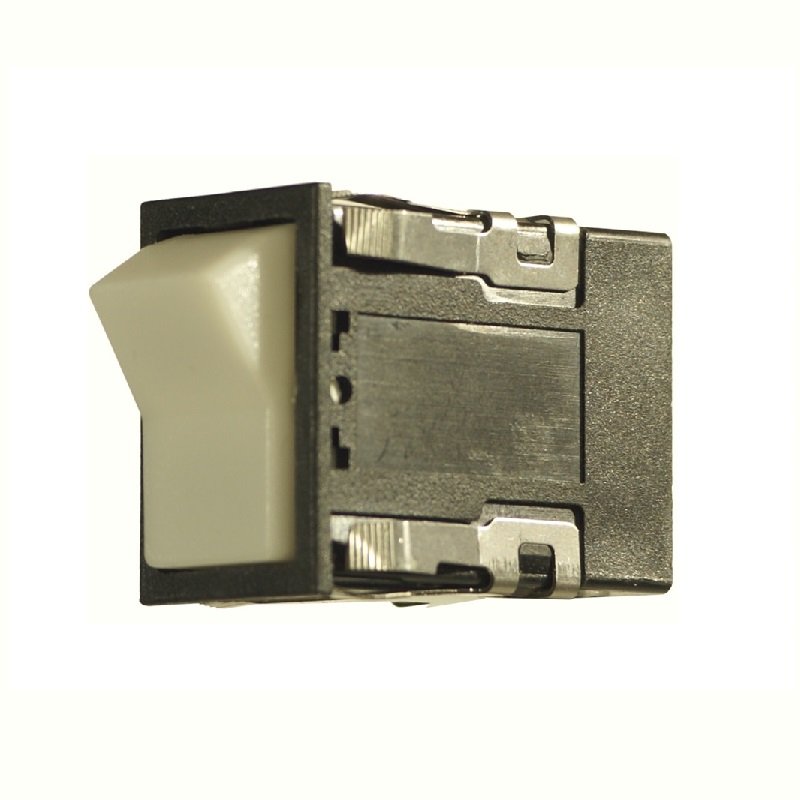

Rectangular DPST Rocker Switch rated for 15 amps having a single independent lamp circuit.

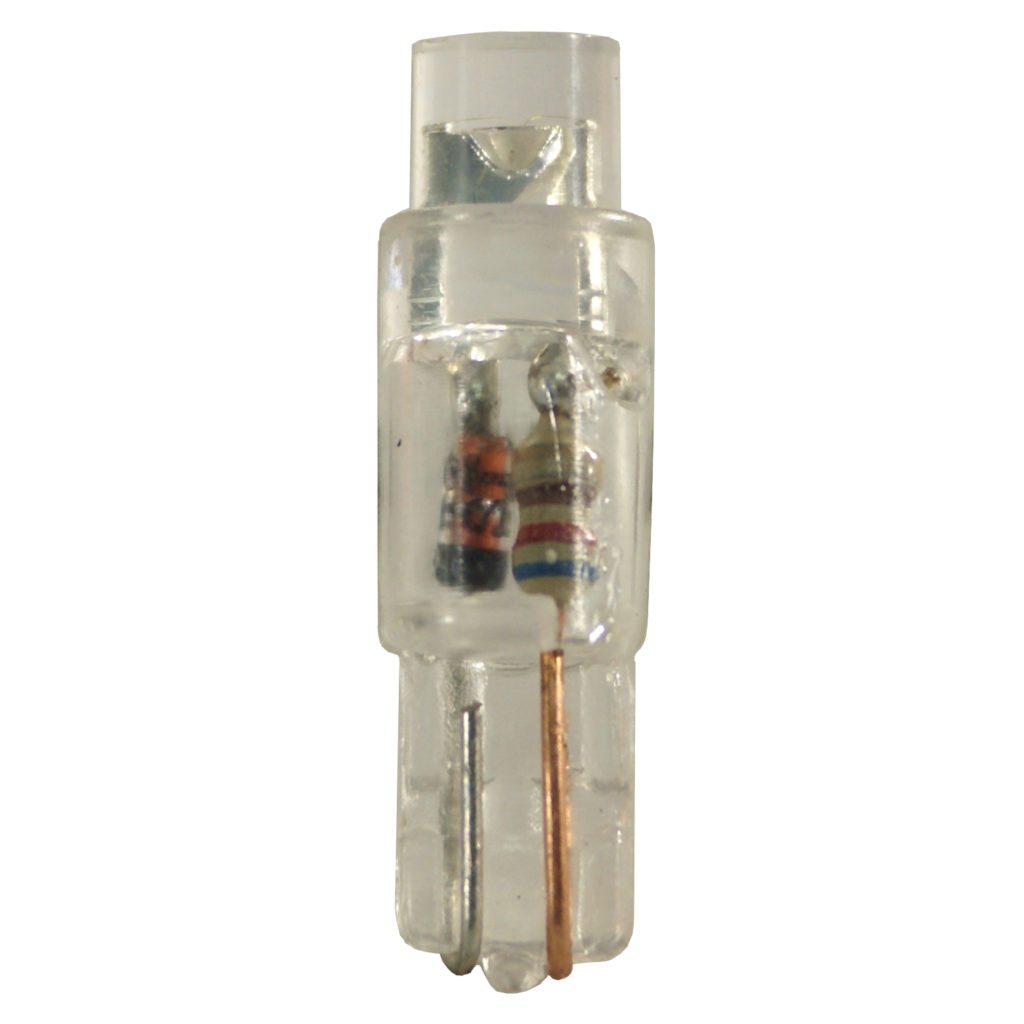

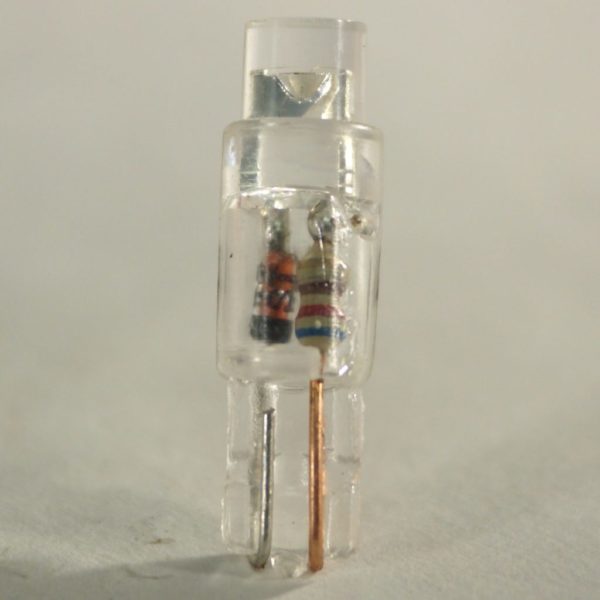

Both AML 12vdc & AML 24vdc LED lamps draw 15ma (0.015amps) at their rated voltages.
Both AML 12vdc & AML 24vdc LED lamps have internal current limiting resistors & polarity protection diodes.

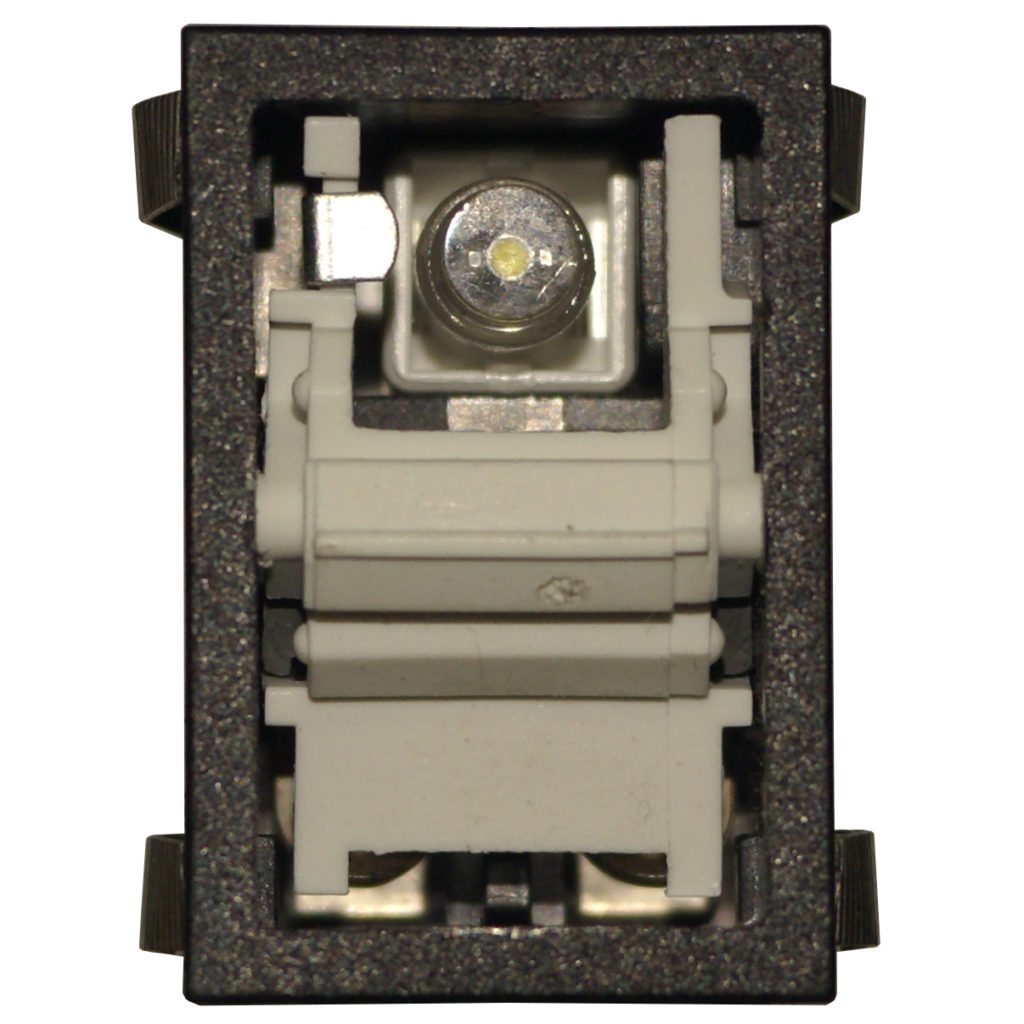

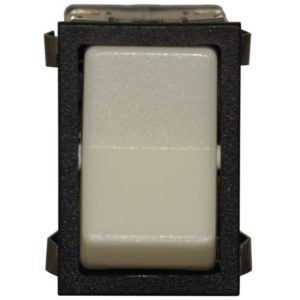

The AML-34 switches come with one white switch cap/cover as shown in photo as well as one 12vdc LED lamp, unless requested otherwise.
The covers can be customized. Please contact engravers.net if you wish to order other colors and custom engraving.

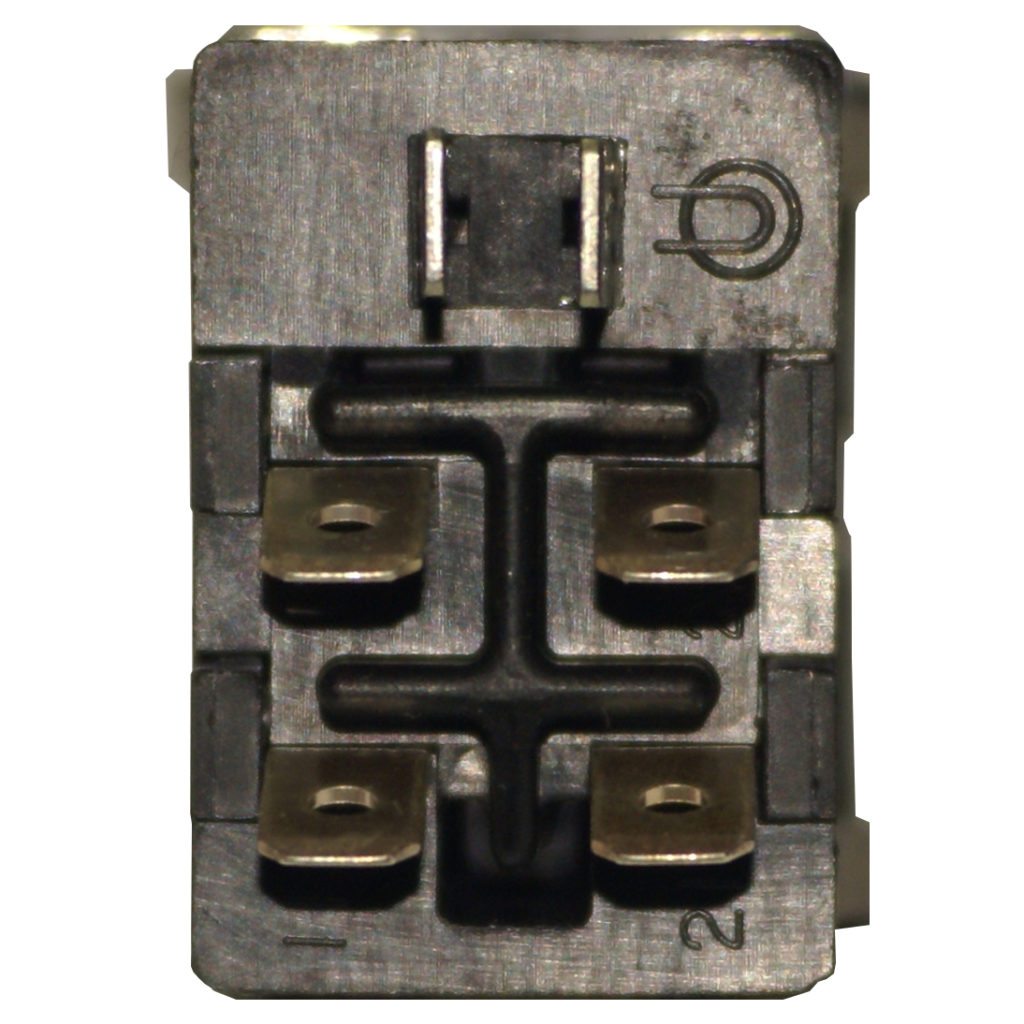

Use SA-048 or SA-049 3/16″ Fast-On terminals for wiring.
Note: Like most LED lights this LED is polarity sensitive,
if it does not light up just swap the connections.
