Description

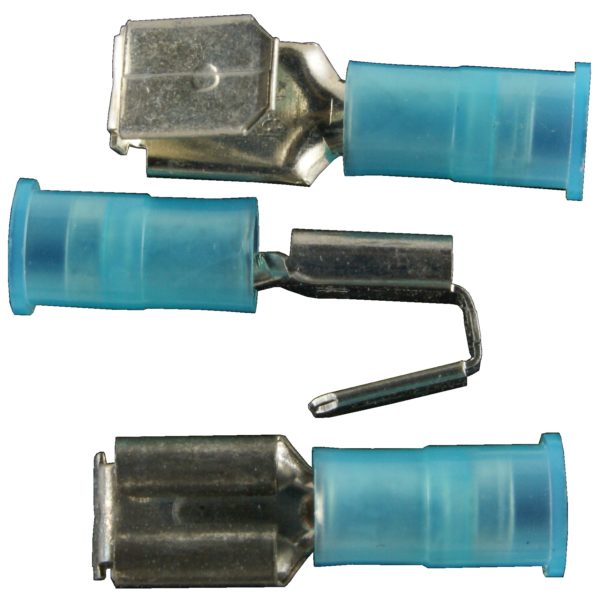

BLUE insulated 16-14awg 1/4″ series Fast-On piggyback QD crimp terminal.
The terminal accepts a 1/4″ wide x 0.032″ thick tabs.
These terminals are for stranded Tefzel type aircraft wires.
The BLUE color of the insulation indicates the 16-14awg wire size.
The funnel entry feature allows wire insertion without “turned back” wire strands.
The terminals are temperature rated for use from -40 to +105°C & rated for 300 volts.
1/4″ Fast-Ons are used on our fuse blocks, grounding busses & strips.
3/8″ 2:1 heat shrink tubing can be used for labeling over the terminals insulation.
Use SAT-001 crimper with SAT-030 crimper dies to crimp these terminals.
Terminals are sold individually.
