Description

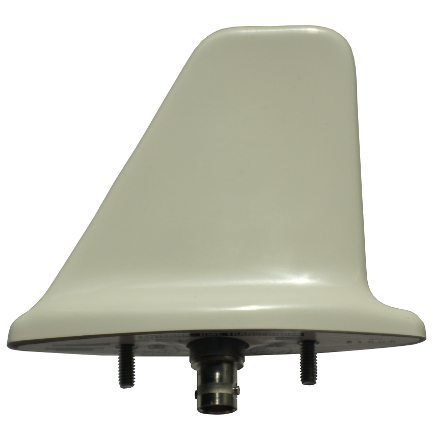

The CI 105 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has a standard two stud mounting configuration.
Blade Transponder Antenna.
- BNC connector, female on antenna. Purchase SA-1010M to mate with antenna
- 960 MHz – 1220 MHz frequencies
- Rated up to 400 Knots TAS at 25,000 ft
Improved aerodynamic design. Comes with gasket.
- Encased in a glass reinforced polyester molded shell
- Standard two stud mounting configuration
Weight:
0.24 lb
Dimensions:
3.23 in, height
Finish:
polyurethane enamel
Connector:
BNC (female)
Frequency:
960 MHz to 1220 MHz
VSWR:
1.5:1 @ 960 Mhz – 1220 MHz, maximum
1.3:1 @ 1025 MHz – 1150 MHz, maximum
Polarization:
Vertical
Radiation pattern:
equivalent to a 1/4 wave stub
Impedance:
50Ω
Resistance DC:
open circuit
Power RF:
2.5 KW, Peak
Temperature:
-54°C to 55°C
Altitude:
70,000 ft
Airspeed:
400 Knots TAS at 25,000 ft
Gasket:
B10505
