Description

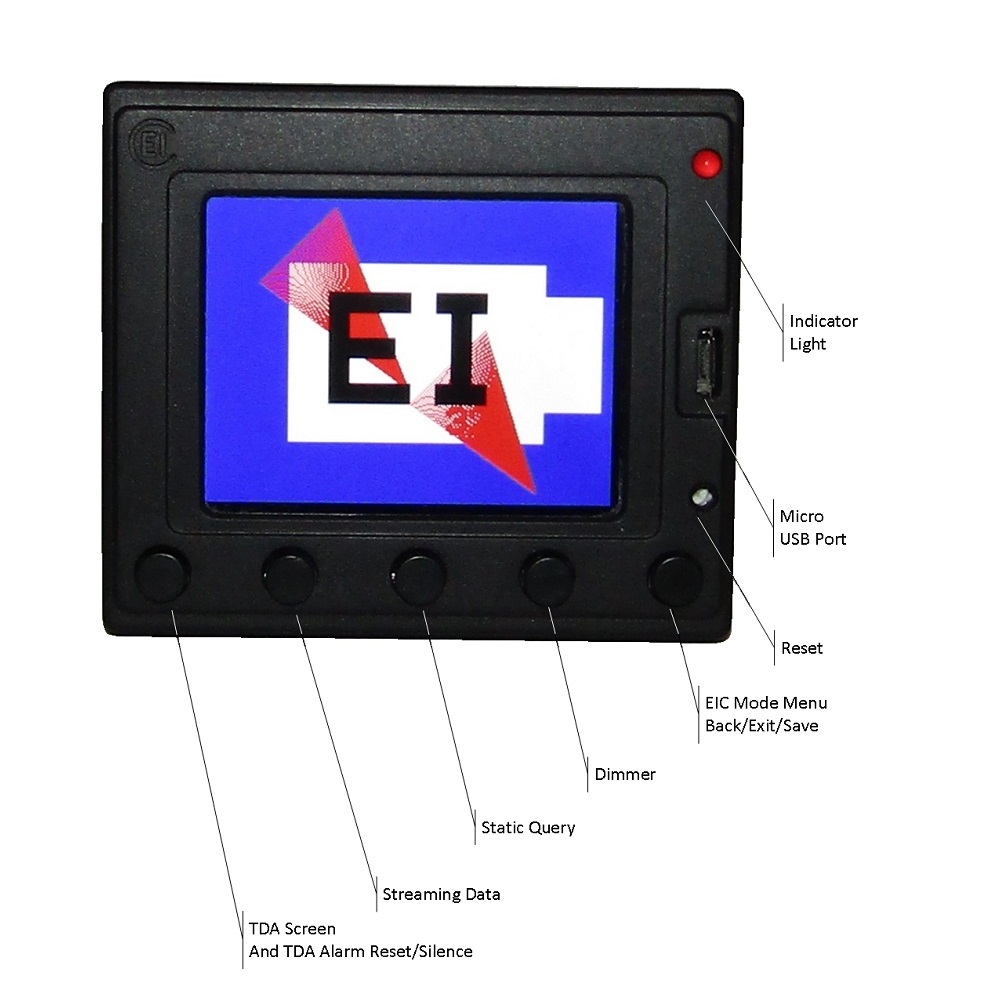

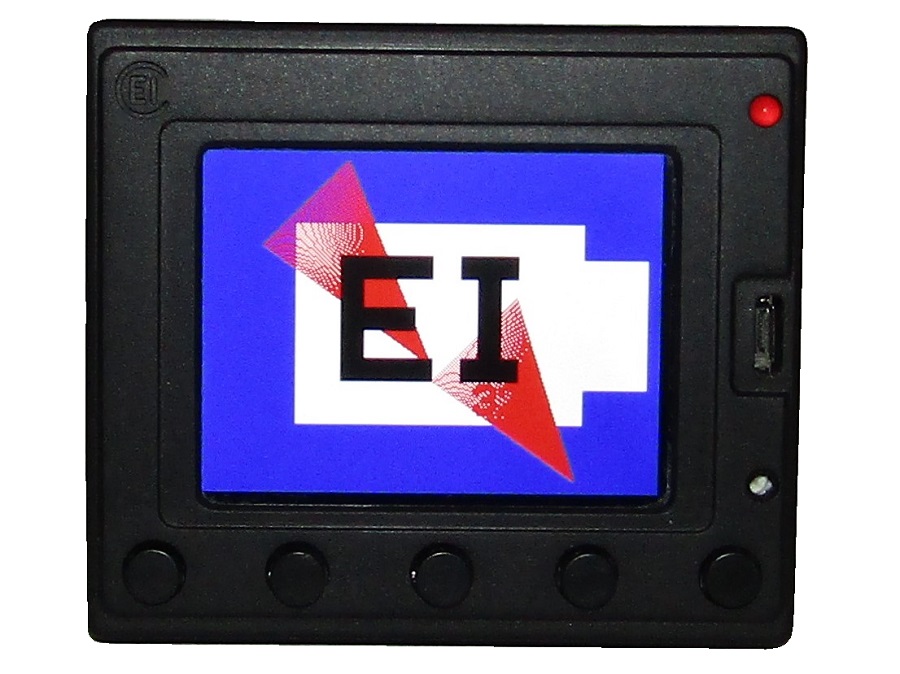

Features of the New EI Commander EIC32:
- New and improved case that fits a standard 2 ¼” instrument hole
- Advanced 2.4” LCD screen
o Viewable from any angle
o 800 nits – 8 times easier to read in Sunlight
- Weighs less than 3.5 ounces
- Prestart timing synchronization verification and Continuous verification of timing mark synchronization*
- Monitoring of ignition harness and sparkplug health
o Detects fouled plugs and/or broken plug wires
- Simpler / easier to use
- Data logging – 2.5 hours continuous loop
o Download to a USB memory stick via a front mounted micro USB port
- Three user definable timing configurations in addition to the default A & B curves.
- Easy to dim screen for night operations
- Audio alarm / LED warning functions
o User selectable alarms and volumes
- Allows for the adjustment of P-mag parameters:
o Advance shift (Firing angle)
o Maximum advance
o Rev limiter
o Tach signal Pulses Per Revolution (PPR)
o Run Mode Start Delay
- Displays P-mag temperatures in Fahrenheit or Celsius
- All P-MAG ignition timing and ignition restrictions are enforced
- New features to be announced
