Garmin GTN-650Xi

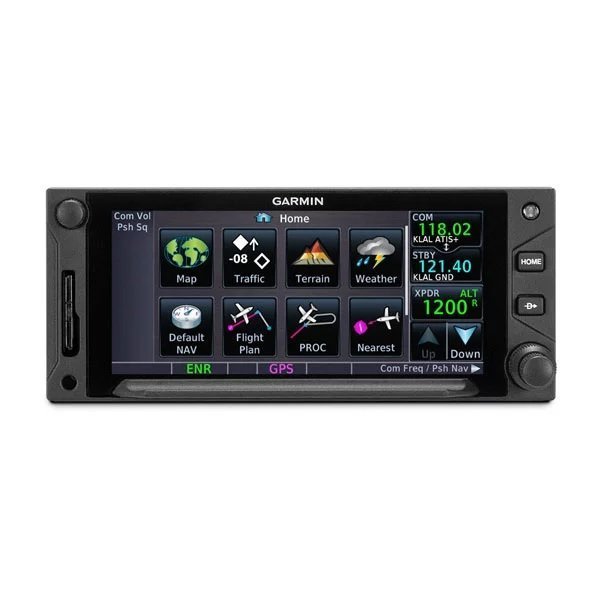

MULTIFUNCTION DISPLAY
Supporting multiple inputs, the 4.9” display can put moving maps, terrain, traffic2, weather2, airport diagrams and more at your fingertips.

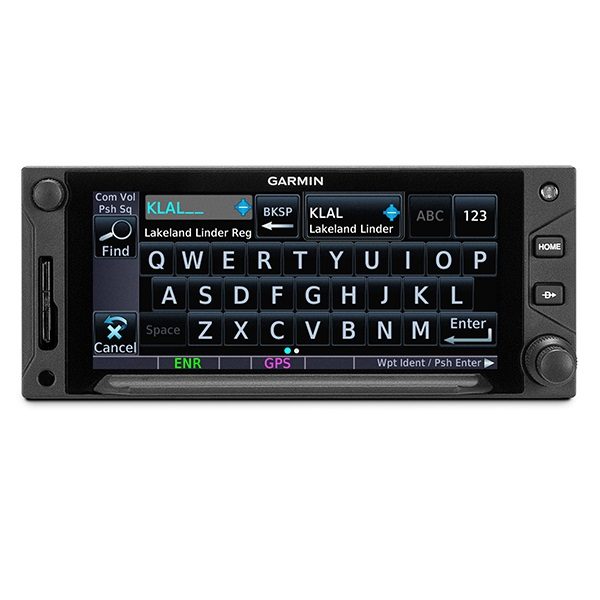

EASY DATA ENTRY
Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.

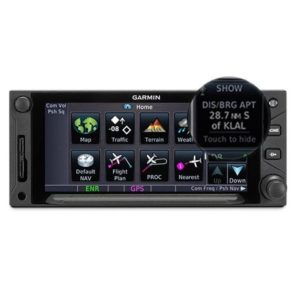

TELL IT, TUNE IT
Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke2.
SEE THE FULL PICTURE
Graphical routing on the display lets you visualize your entire flight plan, including departures, arrivals, visual/instrument approaches, holding procedures and more.
FAST FIND
As soon as you start typing, the GTN Xi FastFind feature uses quick predictive logic to suggest airport and waypoint entries by using current GPS position. Just select and go.
AIRWAYS, YOUR WAY
Victor airways and high-altitude jet routes can be overlaid on the map. For easy IFR routings, view airway segments available from a waypoint and corresponding exit options.

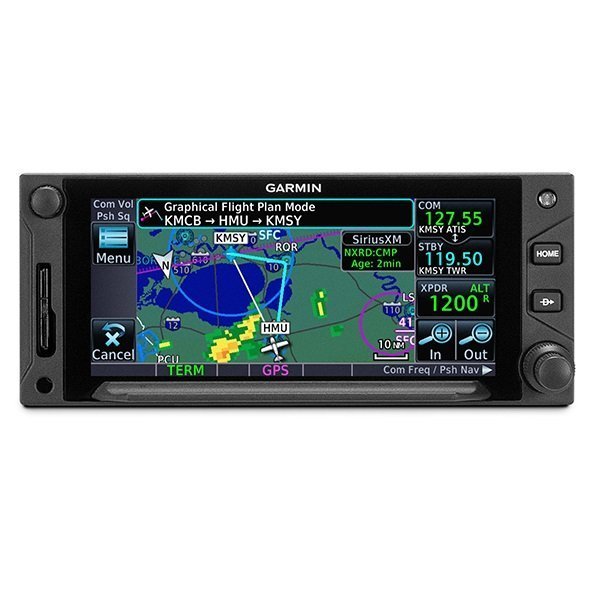

“RUBBER BAND” REROUTES
This handy feature lets you grab a flight plan leg on the screen, and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan.
VIRTUAL MAP TOPOGRAPHY
By referencing built-in terrain, mapping and obstacles databases, GTN 650Xi shows detailed surface features, cities, airports, SUAs and more on the dynamic map display.
TERRAIN ALERTING
A built-in database provides color-coded display overlays to warn when potential terrain conflicts loom ahead. Class A or B TAWS alerting is optionally available.

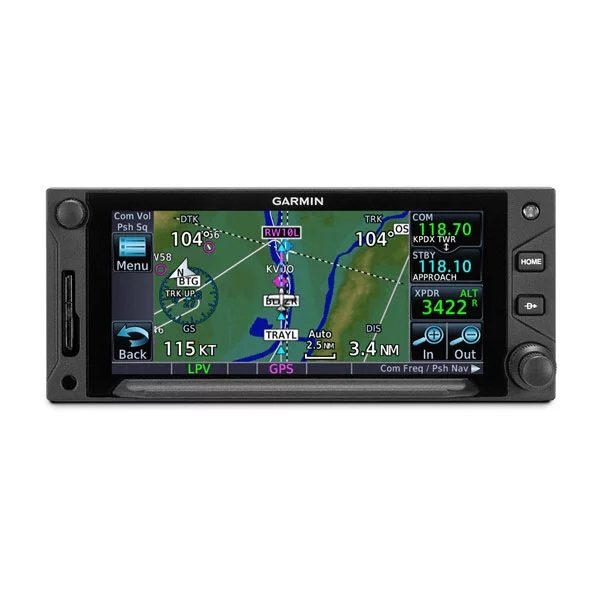

MORE APPROACH OPTIONS
The WAAS/SBAS-certified GPS receiver expands your landing options, enabling GPS-guided LPV glidepath approaches down to ILS-comparable minimums as low as 200’.
VHF NAVAID CAPABILITY
In addition to GPS guidance, full VHF navigation capabilities offer complete airspace system access, including VOR/ILS with localizer and glideslope.

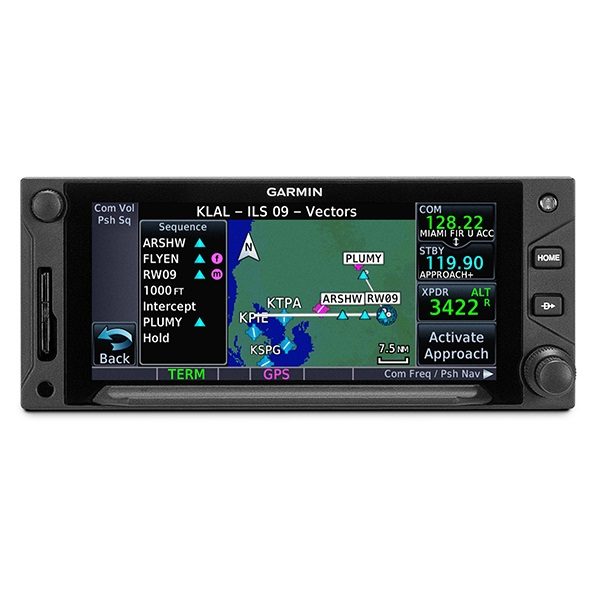

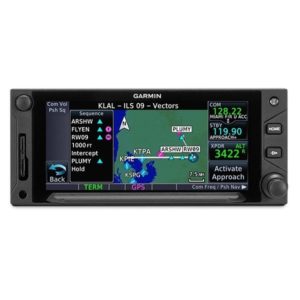

AUTO-ASSIST ENTRY
When loading procedures, the GTN Xi series will pre-enter NAV frequencies to standby position for quick access. It also auto-selects the VHF NAV source for ILS approaches.

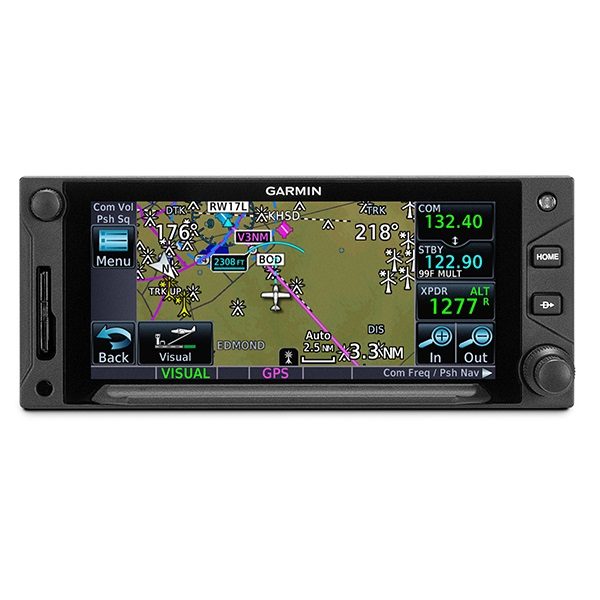

CLEARED FOR THE VISUAL
GTN Xi can give advisory visual approach guidance based on a published glidepath or a 3-degree slope from the runway threshold (with terrain/obstacle clearance).

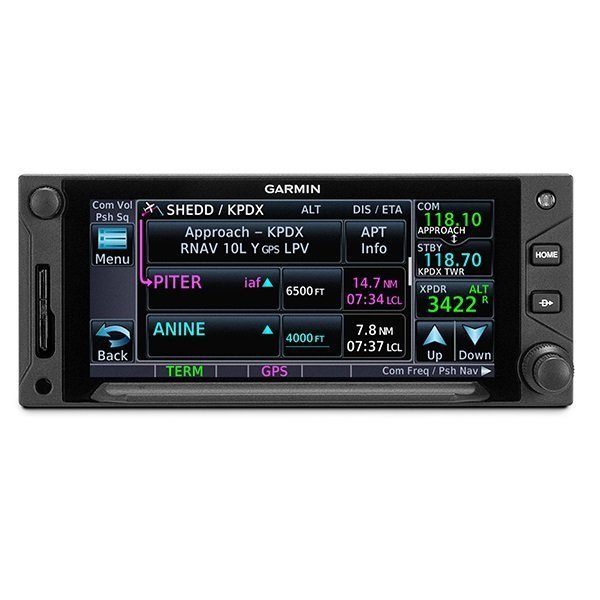

AUTOPILOT INTERFACE
Precise course deviation and roll steering outputs can be coupled to select autopilots, enabling virtually all IFR flight procedures to be flown automatically.
HOLDING PATTERNS
IFR pattern entries can be tricky. GTN 650Xi lets you easily create and execute holding patterns over a published or user-defined waypoint.
SEARCH AND RESCUE
For aerial surveillance, common search pattern types — including orbit, parallel line, expanding square and sector search — can be loaded into your flight plan on the GTN 650Xi navigator2.
SUPPORTS VNAV AND MORE
With our GFC™ 500 and GFC 600, GTN 650Xi supports advanced modes and features such as vertical navigation profiles, radius-to-fix legs, missed approaches and more.

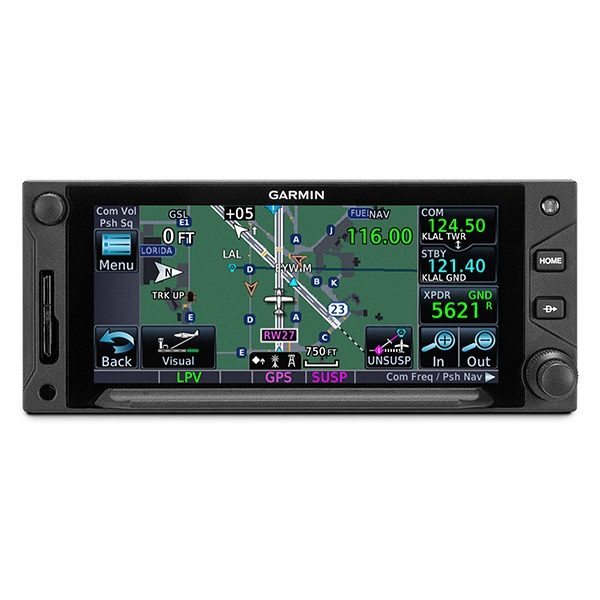

SAFETAXI® DATABASE
Upon landing, georeferenced SafeTaxi diagrams on the display automatically help track your location on hundreds of airports.

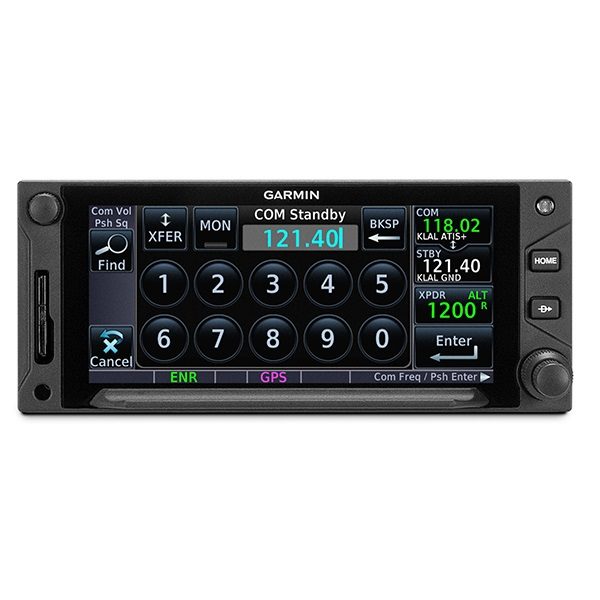

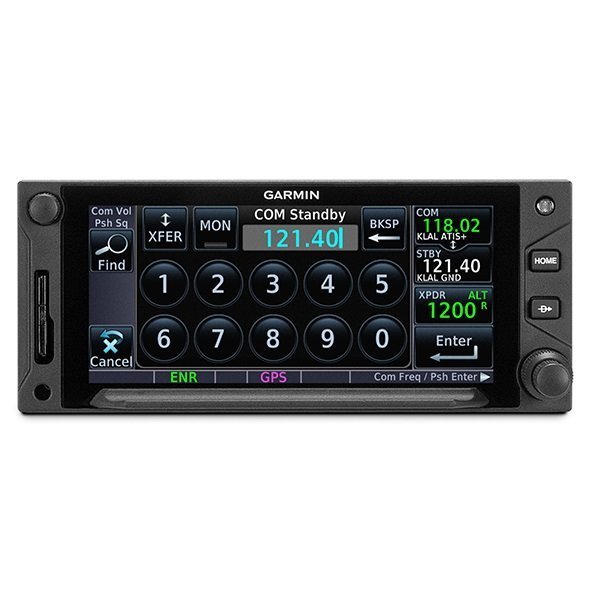

BUILT-IN COMM TRANSCEIVER
A 2,280-channel capable VHF Comm radio gives GTN 650Xi a standard 10 watts (or optional 16 watts) of talking power with pilot-selectable 25 kHz or 8.33 kHz channel spacing.

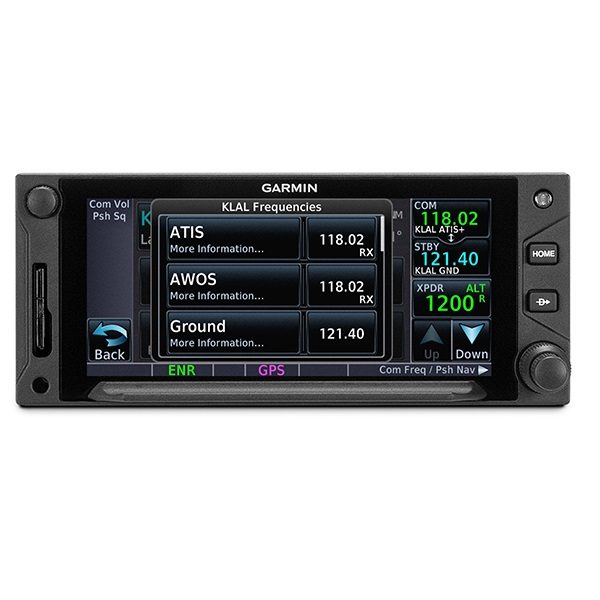

FIND A FREQUENCY
A work-saving lookup function lets you enter any navaid or airport identifier and have the GTN Xi navigator look up the frequencies for that location (tower, ground, ATIS, clearance delivery, etc.)
INSTANT RECALL
GTN Xi database technology allows you to quickly recall your most frequently or recently used frequencies. Plus, holding down the volume knob will dial up the emergency frequency.

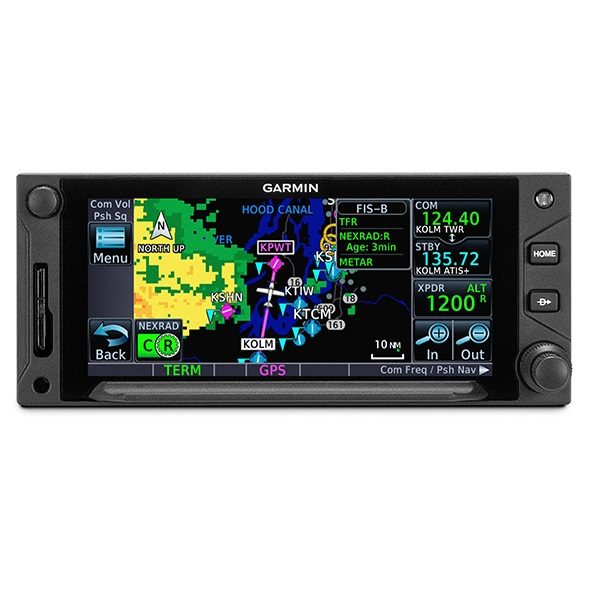

ADS-B DATA LINKS
With available Garmin ADS-B “In” equipage solutions, GTN 650Xi can display up to 60 ADS-B traffic targets as well as subscription-free U.S. weather data.
TARGETTREND™ TRACKING
ADS-B based TargetTrend relative motion tracking on the GTN Xi display gives pilots a faster, more intuitive way of judging traffic closure rates and trajectories.

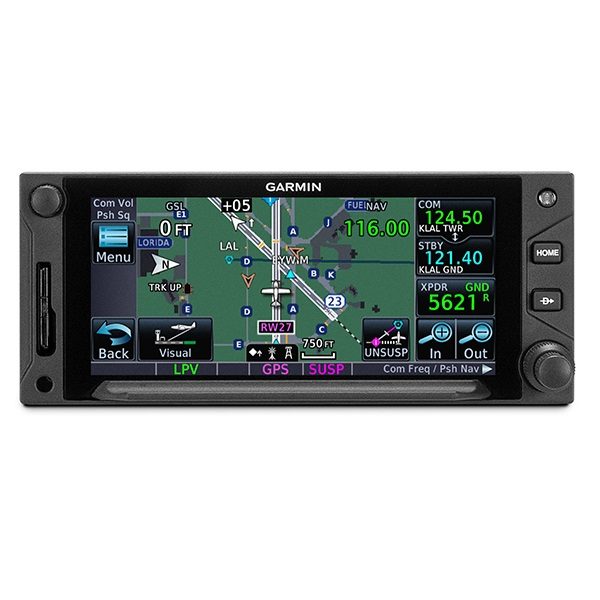

TERMINALTRAFFIC™ DISPLAY
Providing a dynamic display of ADS-B-equipped aircraft and ground vehicles, this technology helps pilots avoid traffic conflicts within the airport environment.

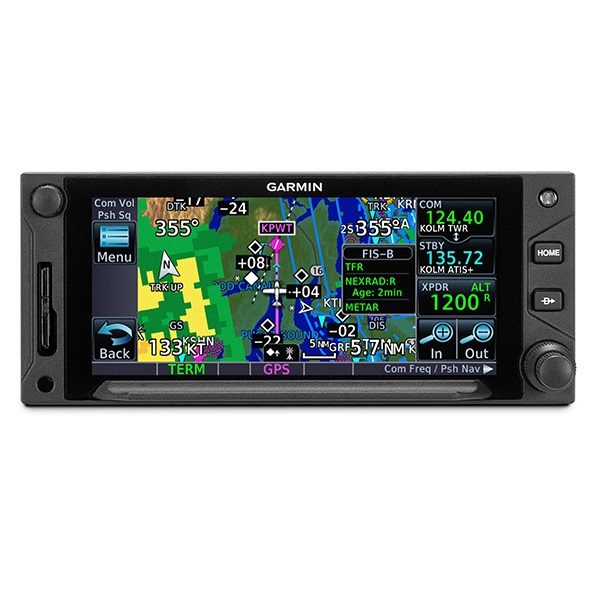

ACTIVE TRAFFIC SOLUTIONS
For more advanced traffic surveillance capability, GTN Xi can integrate with select TAS or TCAS/ACAS systems, including our GTS™ family of ADS-B enhanced products.

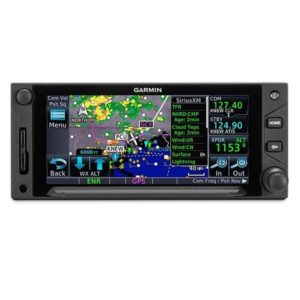

SIRIUSXM® SERVICE
When paired with an optional GDL® 69 datalink receiver, GTN Xi can incorporate SiriusXM satellite weather coverage — plus audio entertainment features4.

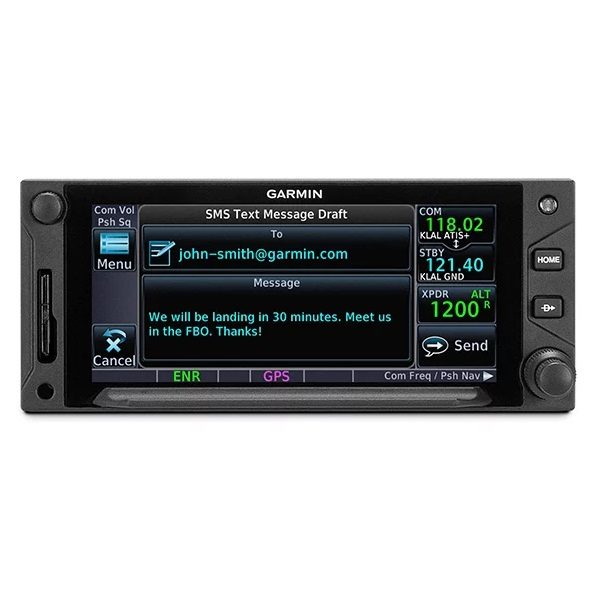

WORLDWIDE COMMUNICATIONS
Want global weather, radar imagery and two-way text/voice communications from the air? Connect your GTN 650Xi with our optional GSR 56 satellite link4.
SPECS:
- TSO applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
- Display size: 4.9″ (125 mm) diagonal
- Display resolution: 834 pixels (W) x 370 pixels (H)
- Unit bezel height: 2.65″ (67 mm)
- Unit bezel width: 6.25″ (159 mm)
- Unit depth with connectors: 11.25″ (286 mm) (measured from face of aircraft panel to rear of connector backshells)
- Unit weight: 5.5 lbs (2.48 kg)
- Input voltage range: 11 VDC – 33 VDC
- Operating temperature range: -20° C to 55° C (-4° F to 131° F)
- Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
- LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
- Maximum velocity: 1,166 knots
- Position update Interval: 0.2 sec (5 Hz)
