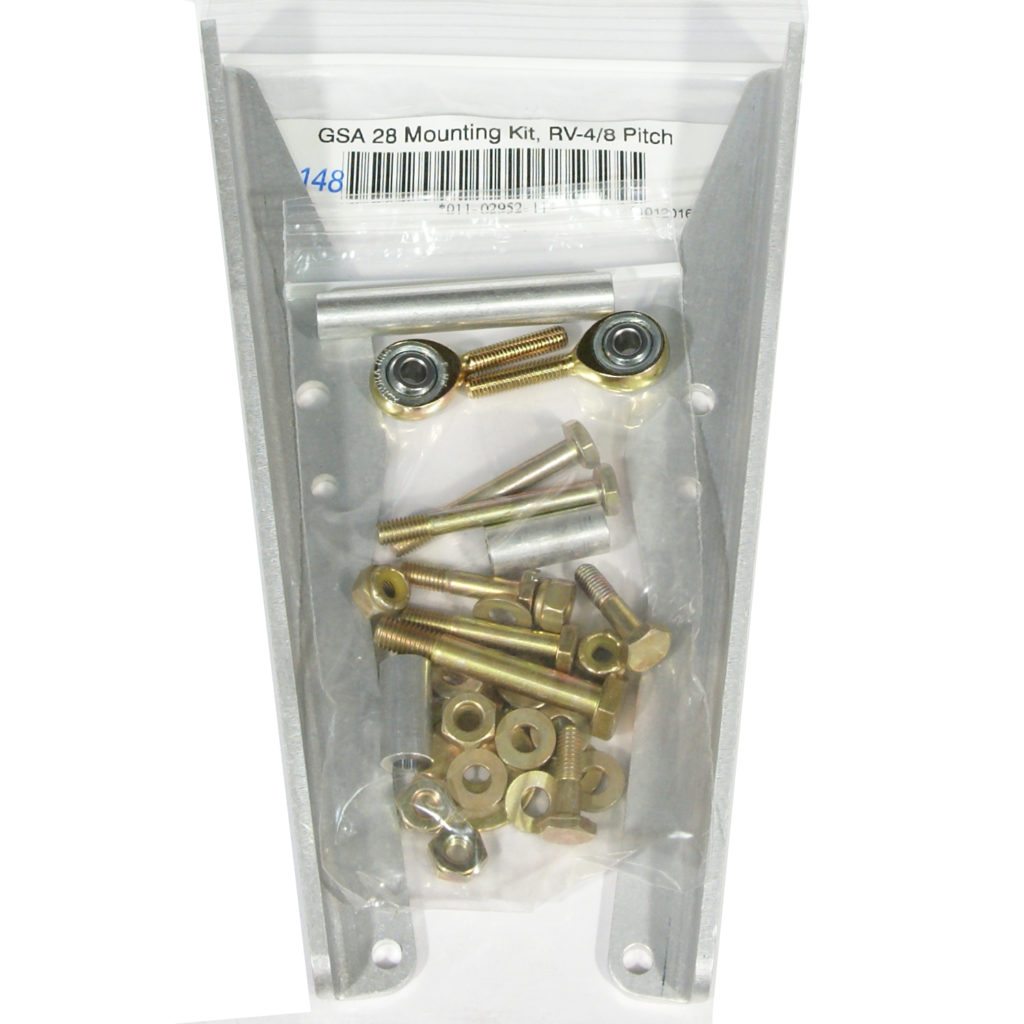

GARMIN Pn.011-02952-11 Mounting Hardware Kit for RV4/RV8 GSA28 Autopilot Pitch Servo
Hardware used to mount autopilot servos.
INCLUDES:
(4x) GARMIN Pn.210-00117-03 Nut-Lock, AN365-1032A
(10x) GARMIN Pn.212-00035-10 Washer, AN960-10
(1x) GARMIN Pn.211-00090-05 Bolt, AN3-7A
(1x) GARMIN Pn.115-01854-03 Bracket-Left, RV4/RV8 Pitch
(1x) GARMIN Pn.211-00090-07 Bplt, AN3-11A
(1x) GARMIN Pn.213-00093-03 Spacer,0.192 x 0.375 x 0.75 Long
(1x) GARMIN Pn.213-00093-04 Spacer,0.192 x 0.375 x 0.875 Long
(1x) GARMIN Pn.211-00090-01 Bolt, AN3-5A
(1x) GARMIN Pn.211-00090-06 Bolt, An3-6A
(2x) GARMIN Pn.212-00080-03 Washer, AN970-3
(1x) GARMIN Pn.115-01854-04 Bracket-Right, RV4/RV8 Pitch
(1x) GARMIN Pn.211-00090-08 Bolt, AN3-14A
(1x) GARMIN Pn.211-00090-09 Bolt, AN3-15A
(1x) GARMIN Pn.211-00090-13 Bolt, AN4-15A
(2x) GARMIN Pn.382-00019-02 Male Rod End Bearing
(2x) GARMIN Pn.210-00116-03 Nut-Jam, AN315-3R
(1x) GARMIN Pn.117-00542-00 Push rod 3/8dia 2.25″ Long Tapped
(1x) GARMIN Pn.212-00043-10 Washer (Thin).AN960-10L
