Description

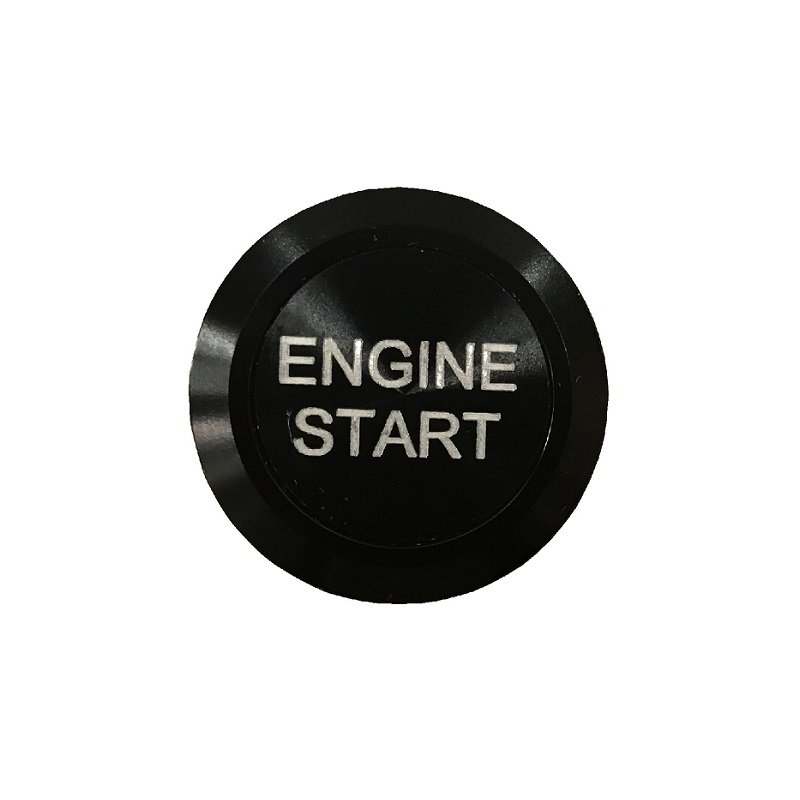

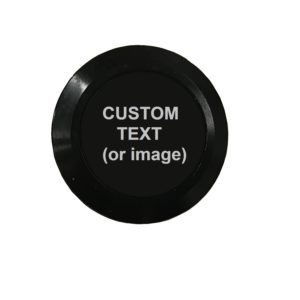

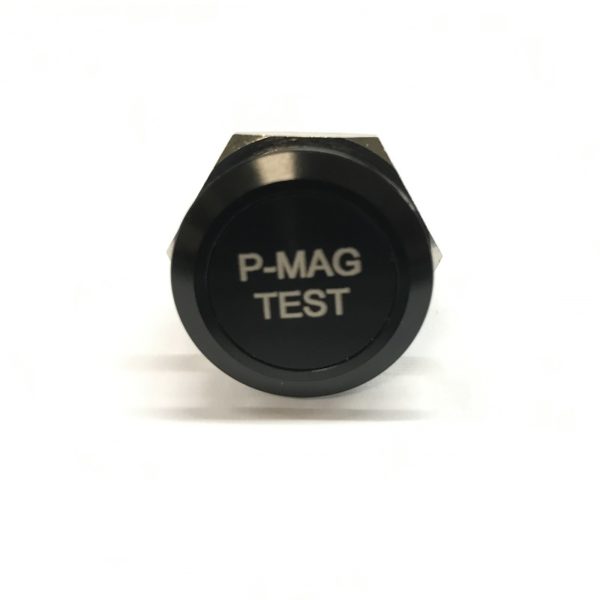

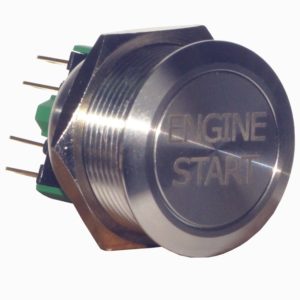

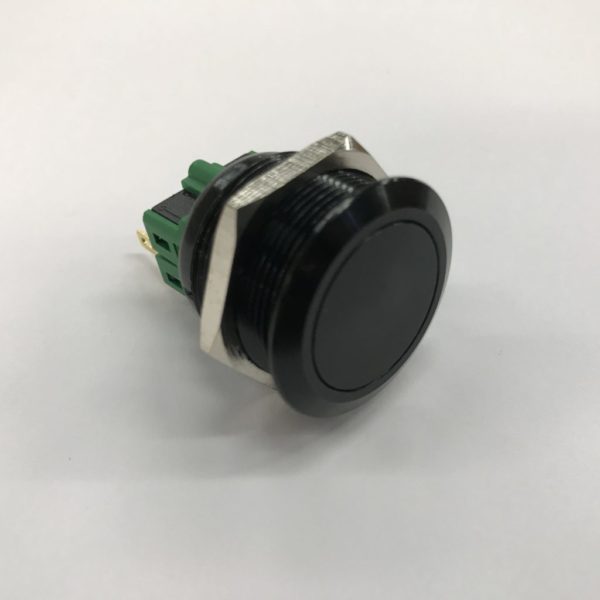

1 inch black aluminum momentary push-button switch.
Face of the button measures 1.1 inch / 27.9 mm diameter.

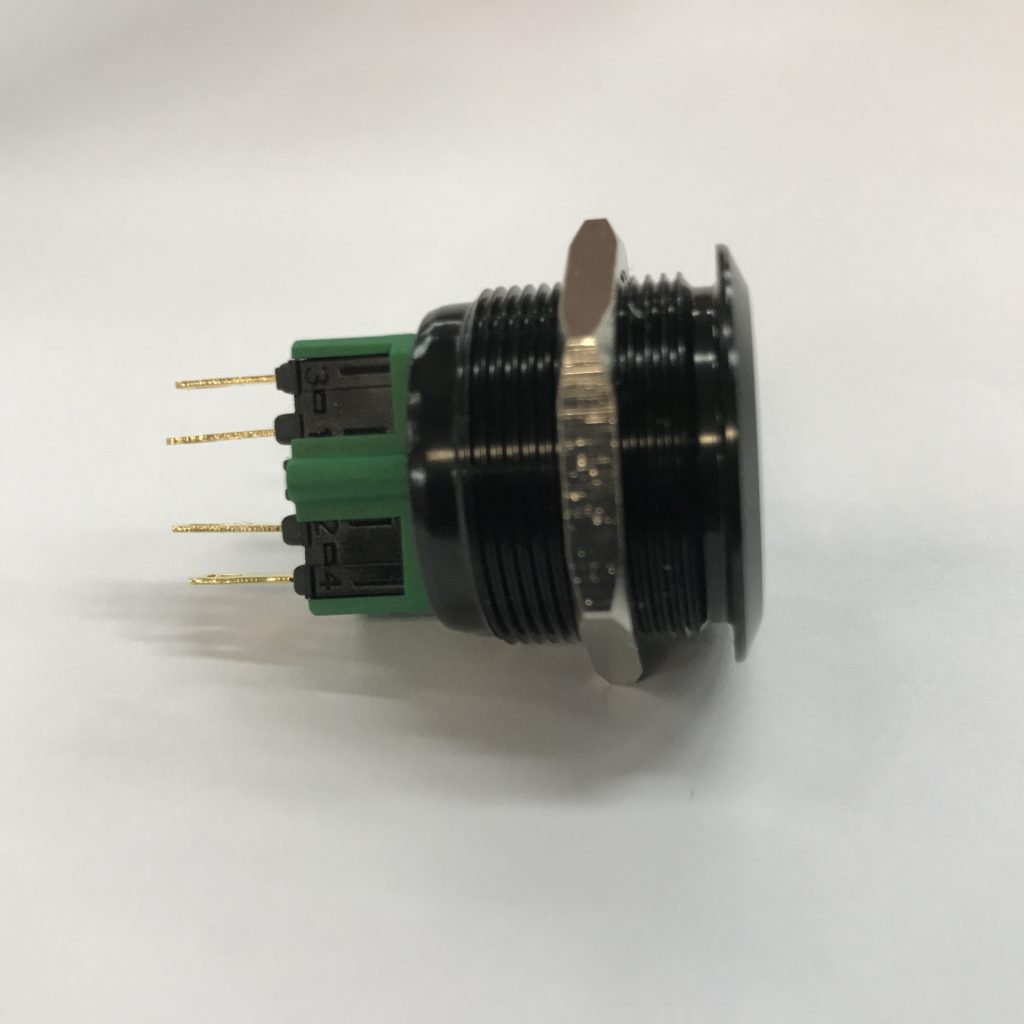

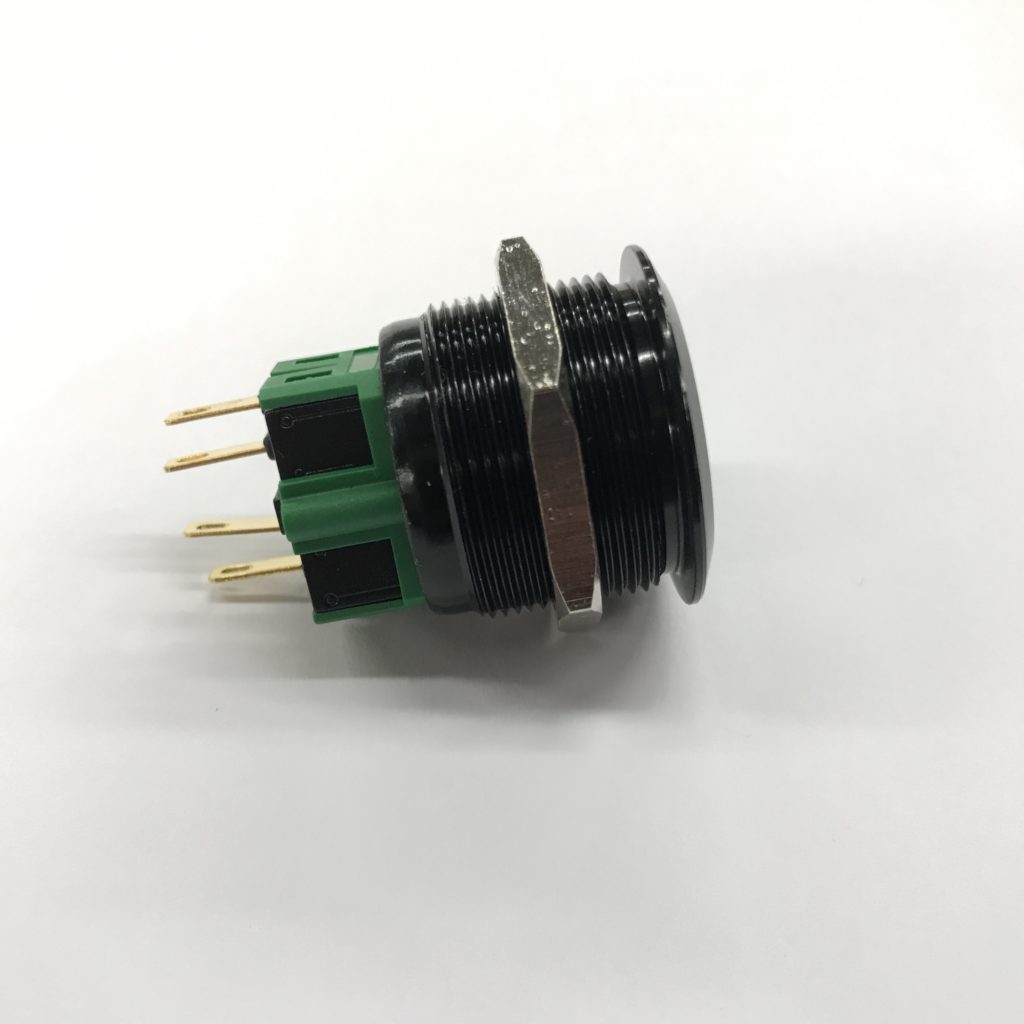

Mounts in .98 in. / 25 mm hole.
Rated 12/24vdc at 3 amps.
Install diameter: 25mm
Switch rating: 3A/250VAC
Shape: Flat head

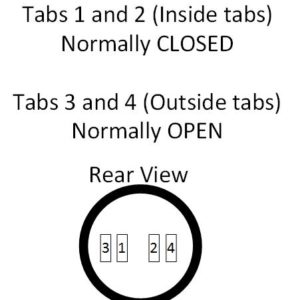

Function: Momentary (1NO/1NC)

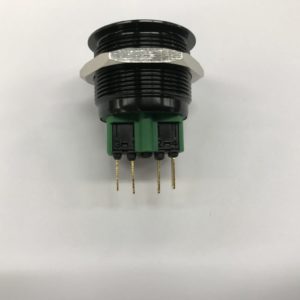

Terminal: Pin terminal
Crust material: Black aluminum
IP rating: IP65
Temperature: – 40° to 75° C (-40° to 167° F)
