Description

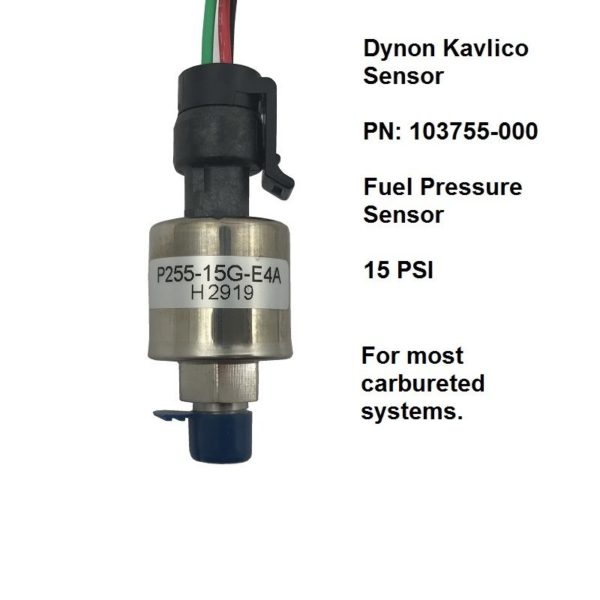

Dynon 15 PSI Kavlico sensor (P/N 103755-000) for most carbureted fuel systems with 0.6–15 PSI requirements.
Sensor, Fuel (Carbureted)/Fluid Pressure 15 psi, 1/8-27 NPT mounting threads & comes with pre-wired mating connector having 12 inch M22759/9-16 200 deg. C wire leads.
“As of 2020, Dynon no longer supplies the original 15, 50, 75, or 150 PSI Kavlico sensors (P/Ns 101690-000, 101716-000, 101692-000, 101693-000). For new installations, select the appropriate sensor for the airplane’s fuel system:
• Use the new 15 PSI Kavlico sensor (P/N 103755-000) for most carbureted fuel systems with 0.6–15 PSI requirements.

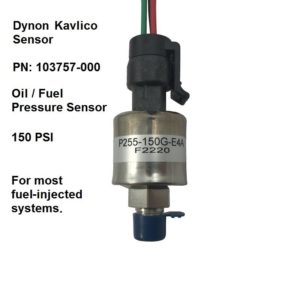

• Use the new 150 PSI Kavlico sensor (P/N 103757-000) for most injected fuel systems with 6–150 PSI requirements.
If both the 50 PSI and 150 PSI sensors meet the airplane’s fuel system requirements, then use the higher pressure 150 PSI sensor.
If neither of the above are suitable for the airplane’s fuel system:
• Use the new 50 PSI Kavlico sensor (P/N 103713-000) for fuel systems with 2–50 PSI requirements.
The new sensors are a direct mechanical and electrical replacement for the original sensors. Updated software sensor definitions are available from Dynon Avionics’ software download page.” (Dynon Skyview manual rev. AG)
List of Dynon Kavlico Pressure Sensors:
Oil Pressure -150 PSI
Fuel Pressure (Injected) – 150 PSI
Fuel Pressure (Carbureted) – 15 PSI
