Description

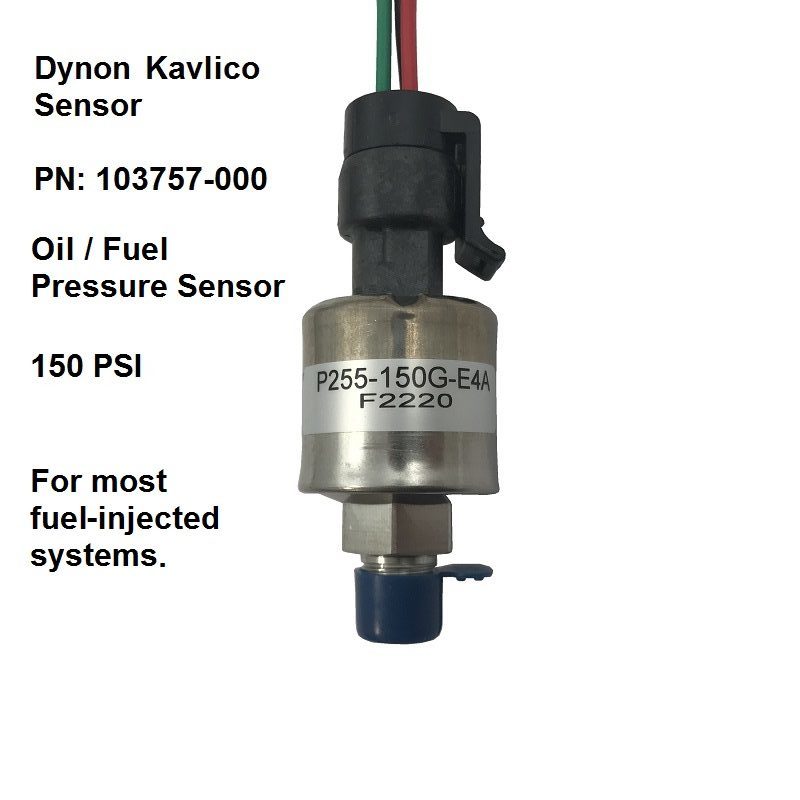

Dynon Part number 103757-000.

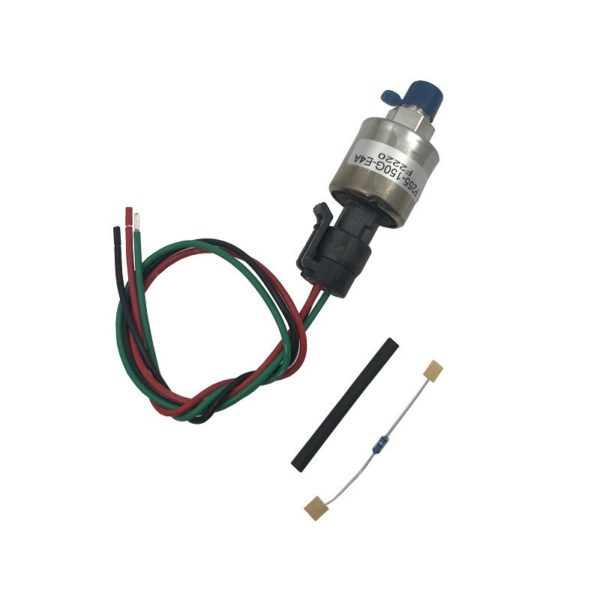

Sensor, oil pressure and fuel pressure: 1/8-27 NPT 6-150 PSI Sensor mounting threads & comes with pre-wired mating connector having 12 inch M22759/9-16 200 deg.C wire leads.
The pressure sensor has a 1/8-27 NPT pipe thread fitting. Use appropriate adapters and materials to remotely mount the sensor. Do not mount the sensor directly to the engine’s pressure port.
Note: “As of 2020, Dynon Avionics no longer supplies the original 150 PSI Kavlico sensor (P/N 101693-000). For new installations, use the new 150 PSI Kavlico sensor (P/N 103757-000). The new sensor is a direct mechanical and electrical replacement for the original sensor. Updated software sensor definitions are available from Dynon Avionics’ software download page.” (Dynon Skyview manual rev. AG)
List of Dynon Kavlico Pressure Sensors:
Oil Pressure -150 PSI
Fuel Pressure (Injected) – 150 PSI
Fuel Pressure (Carbureted) – 15 PSI
(DYNON Pn. 101693-000 has been replaced with Pn. 103757-000)
