Description

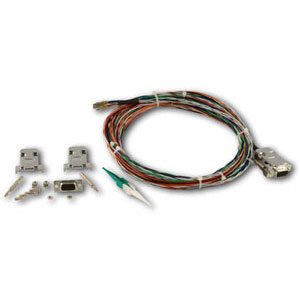

DYNON Pn. 101269-010 SV-NET-10CP; Dynon Skyview 10 Foot long Network Cable with a connector on one end; Pins on the other end. Connector and Backshell included.
These longer cables are intended to connect a display to an ADAHRS Module located back in the fuselage or wing. Or, for aircraft with a rear engine, they are used to connect to the EMS Module mounted near the aft firewall. One end has only the pins crimped to the wires, so that the cable can be easily routed through bulkhead through-holes, conduits, and other tight paths. Once the cable is installed in the aircraft the pins can be easily affixed to the D9 connector with the included insertion tool.
