Description

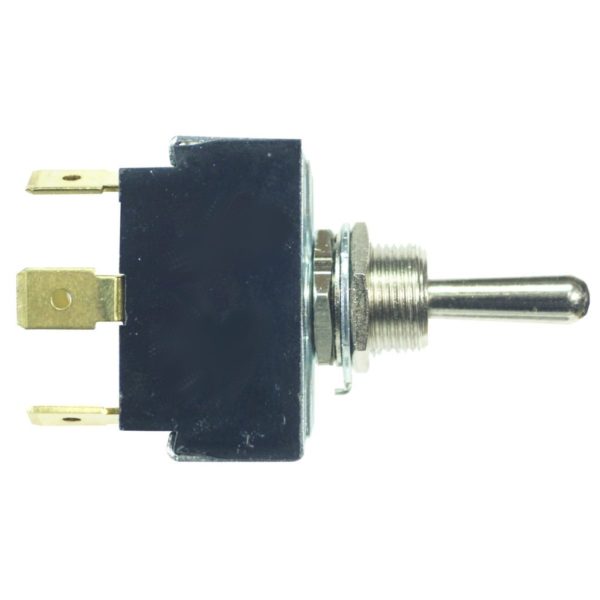

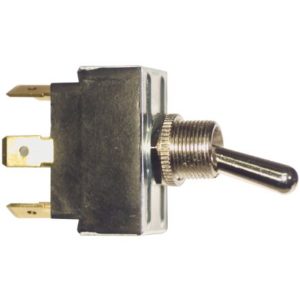

Toggle switch 3 position DPDT On-On-On. 2-10 switch
Commonly used as Master switch.
Has 0.250in Quick-Connect fast-on tab terminals.
Mounts in 15/32″ hole.
Often referred to as a “2-10” switch.

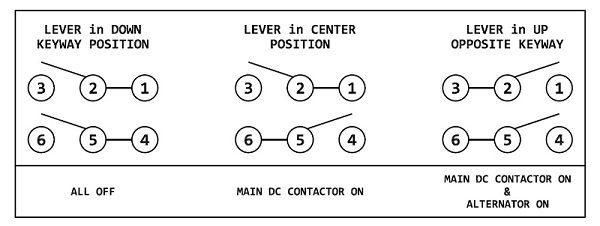

Switch Logic
If used as a master, the switch would function as follows:
Make connection using fast-on terminals.
- SA-001: RED insulated 22-18awg 1/4″ series* Fast-On QD receptacle crimp Terminal.
- SA-002: BLUE insulated 16-14awg 1/4″ series* Fast-On QD receptacle crimp Terminal.
- SA-047: YELLOW insulated 12-10awg 1/4″ series* Fast-On QD receptacle crimp Terminal.
Alternative switches with similar logic:
