Description

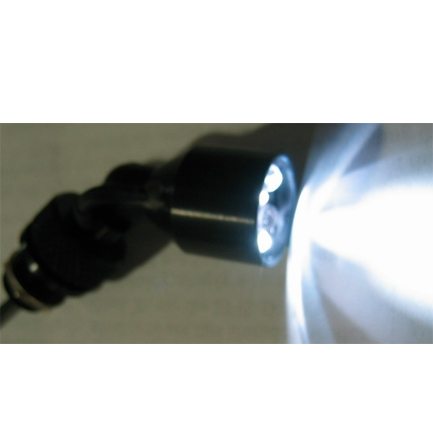

Easily installed, dimmable, unobtrusive and efficient, the MAPLIGHT-W-24v has four white LEDs that illuminate simultaneously. This LED MAPLIGHT is compatible with all dimming systems. Each LED MAPLIGHT is manufactured and tested in accordance with FAA-PMA-approved protocols for quality assurance and customer satisfaction.
This 24-volt model is rated for 30 volts DC maximum at 15 milliamps (0.015amps) & is fully adjustable in two directions. The MAPLIGHTs black wire is ground & the other wire is + DC power.

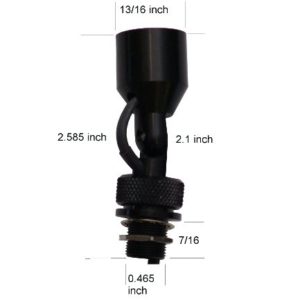

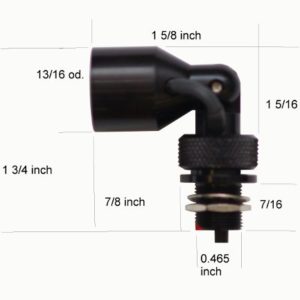

The total installed height when extended is 2.125″ & it mounts in 15/32” thru hole.
The wiring leads are 19 inches long.
For complete details see the Maplight-Information sheet.

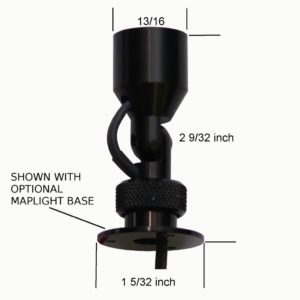

The SteinAir MAPLIGHT-BASE allows more secure mount
